High Current PCB Design Guidelines

Everything you need to design reliable Power Electronics—from trace widths to Thermal Management

Understanding High Current PCB Challenges

When current exceeds about 10A, your Pcb Design enters a different world. Below that threshold, standard practices work fine. Above it, you're fighting physics—resistive heating, voltage drop, electromagnetic interference, and Thermal Management become dominant concerns.

I've designed PCBs handling from 10A to 500A across applications from LED drivers to EV chargers. Here's what I've learned the hard way, consolidated into actionable guidelines you can use today.

Chapter 1: Trace Width Calculations

The IPC-2152 Standard vs. Old Methods

Forget Ipc-2221 lookup charts—they're outdated and overly conservative. Ipc-2152 gives you physics-based calculations that account for your actual conditions:

Parameter	Definition	Typical Values
I	Current (Amps)	Design requirement
k	Correction factor	0.024 (external, still air)
ΔT	Temperature rise (°C)	10°C (conservative) / 20°C (standard)
A	Cross-sectional area (sq mils)	Width × Thickness

Quick Reference: Trace Widths That Work

Chapter 2: Copper Weight Selection

Copper Weight dramatically affects your current capacity and thermal performance. Here's the practical breakdown:

Copper Weight	Thickness	Best For	Current Capacity*
1 oz (standard)	0.7 mil / 18 μm	Signal traces, low power	To ~10A with wide traces
2 oz	1.4 mil / 35 μm	Power rails, moderate current	10-30A practical range
3 oz	2.1 mil / 53 μm	High Current paths	20-50A with good layout
4+ oz	2.8+ mil / 70+ μm	Extreme current, busbars	50A+ and specialized apps

*Assuming 20°C rise, external traces, still air. Internal traces need approximately 2× the width.

When to Use Heavy Copper

• Current >15A: 2 oz minimum
• Current >30A: 3 oz or consider aluminum core
• Current >50A: Multiple layers or specialized substrates
• Space-constrained designs: Heavy copper reduces trace width requirements

Chapter 3: Thermal Management Techniques

The Four Heat Escape Routes

Every PCB has four ways to shed heat. Understanding these helps you design effective cooling:

1. Conduction through copper: Heat flows through traces and planes to cooler areas
2. Convection from surfaces: Air movement carries heat away
3. Radiation: Infrared emission (minor at typical PCB temperatures)
4. Component-level dissipation: Through leads, thermal pads, and heatsinks

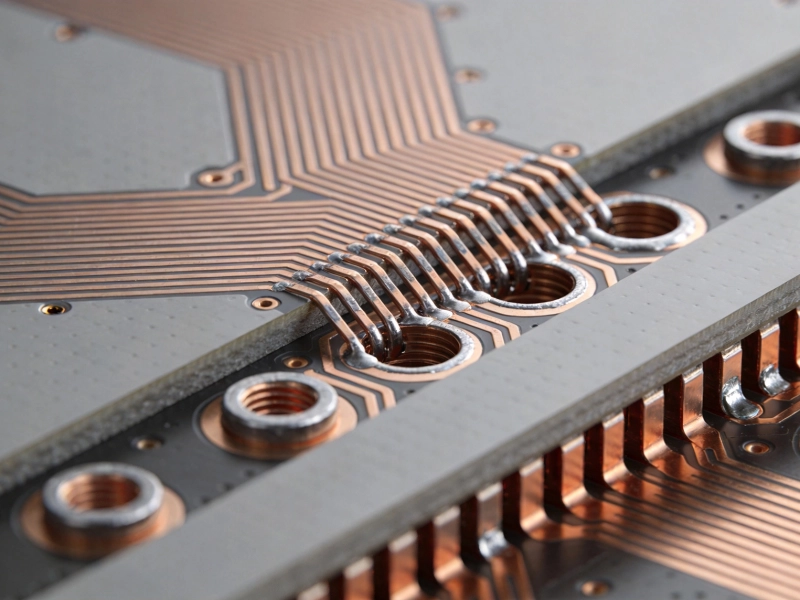

Thermal Vias: Your Secret Weapon

Thermal Vias transfer heat from hot components to internal copper planes or the board's bottom layer. They're essential for any component dissipating more than 1W.

Designing Thermal Planes

Internal copper planes do double duty—they're your primary heat distribution network. Design them strategically:

• Reserve entire inner layers as thermal planes where possible
• Connect thermal planes to vias with minimum 0.5mm traces
• Use thinner dielectric (0.1mm or less) between thermal layers and components
• Avoid splitting thermal planes with signal routing channels

Chapter 4: Power Distribution Design

Power Plane Segmentation

For high current designs, divide your Power Distribution into zones based on current levels:

Star Ground vs. Distributed Ground

Decoupling and Bypass Capacitors

High current switching creates voltage transients. Size your decoupling strategically:

Application	Capacitor Location	Recommended Values
Input bulk decoupling	Within 5mm of power input	100μF + 10μF ceramic
Switching node bypass	Directly under MOSFET/IC pins	1-10μF ceramic (X5R/X7R)
High-frequency decoupling	As close as possible to power pins	100nF - 1μF ceramic
Output filtering	Near output connector	10-100μF bulk + 1-10μF ceramic

Chapter 5: Layout Best Practices

The 7 Deadly High-Current Layout Mistakes

Critical Spacing Guidelines

Condition	Minimum Spacing	Why It Matters
High voltage (>400V)	0.5mm per 100V + safety margin	Creepage and clearance requirements
High current traces	3× trace width between parallel runs	Thermal proximity effect
Thermal pad to nearby traces	2mm minimum	Heat spreading without coupling
Electrolytic caps from power devices	20mm minimum	Capacitor lifetime degradation
Input to output isolation	Per safety standard requirements	Reinforced isolation for AC inputs

Chapter 6: Component Selection

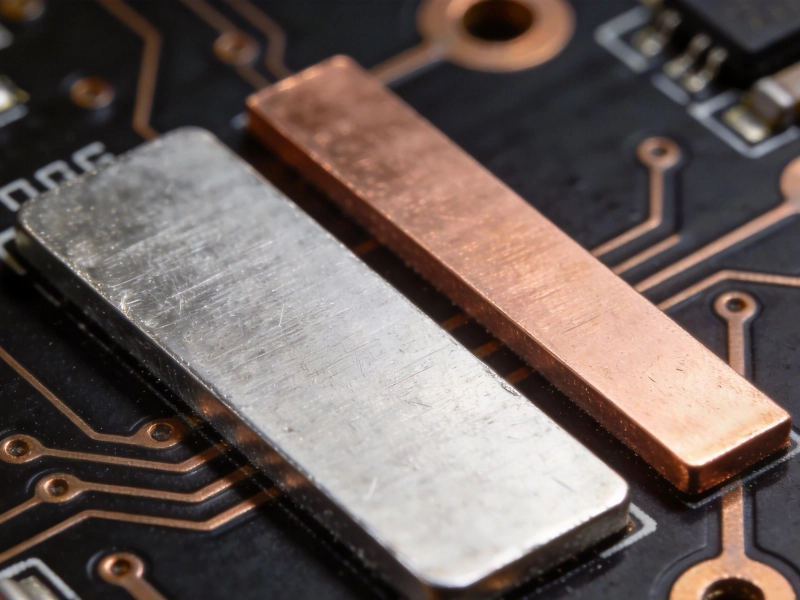

MOSFET/IGBT Thermal Pad Design

The thermal pad under a power semiconductor is often its primary heat escape route. Design it correctly:

• Via array: Minimum 6×6 grid, 0.3-0.5mm drill, 1mm pitch
• Via filling: Use thermal vias to inner copper planes
• Solder mask: Open (no mask) under pad for direct metal contact
• Pad size: Match datasheet recommendation exactly
• Copper weight: Minimum 2oz under thermal pad area

Connector Current Rating Reality Check

Connector ratings assume ideal conditions. Derate them for real-world use:

• 50% derating: For continuous current in enclosed spaces
• Check temperature rise: If connector heats more than 30°C above ambient, reduce current
• Consider pin count: Spread current across multiple pins when available

Chapter 7: Validation and Testing

Pre-Production Checklist

Thermal Validation Testing

1. IR Camera Scan: Image the board at full load after 30-minute stabilization
2. Thermocouple Verification: Confirm IR readings with direct measurements on critical components
3. Thermal Cycling: Run -20°C to +70°C for 100 cycles minimum
4. Long-Term Burn-In: 24-48 hours at full load at maximum ambient temperature
5. Field Simulation: Block 50% of airflow, verify graceful degradation

Chapter 8: Advanced Techniques

Copper Coin Embedding

For extreme currents (>50A) or when you need localized low resistance, embed copper coins in your PCB:

• Process: Mechanically embed copper slugs during lamination
• Benefit: Localized resistance reduction by 10-20× vs standard copper
• Cost: 2-3× standard PCB cost
• Best for: IGBT modules, MOSFET parallel arrays, high-current switching nodes

Press-Fit Terminals for High Current

When connectors can't handle your current, consider press-fit terminals that go through the entire board:

• Current capacity: Up to 100A per terminal
• Benefits: Low resistance, reliable connection, no soldering
• Considerations: Requires specialized PCB fabrication and assembly

Busbar Integration

For currents above 100A, consider external busbars:

• Material: Tin-plated copper, typically 2-3mm thick
• Benefits: Very low resistance, excellent Heat Dissipation
• Connection: Bolted or welded to PCB terminal blocks
• Design: Keep busbars short and direct—no sharp bends

Summary: The High Current PCB Design Checklist

Category	Key Requirements	Acceptable Range
Trace Width	Calculate per IPC-2152	+25% safety margin minimum
Copper Weight	Match current requirements	2-3 oz for most 10-50A designs
Thermal Vias	Under all power components	6×6 grid, 0.3mm drill, 1mm pitch
Ground Design	Star topology for power circuits	Single point near power input
Component Spacing	Thermal and electrical separation	20mm min for heat-sensitive parts
Validation	IR camera and thermocouple testing	No hotspots above 105°C
